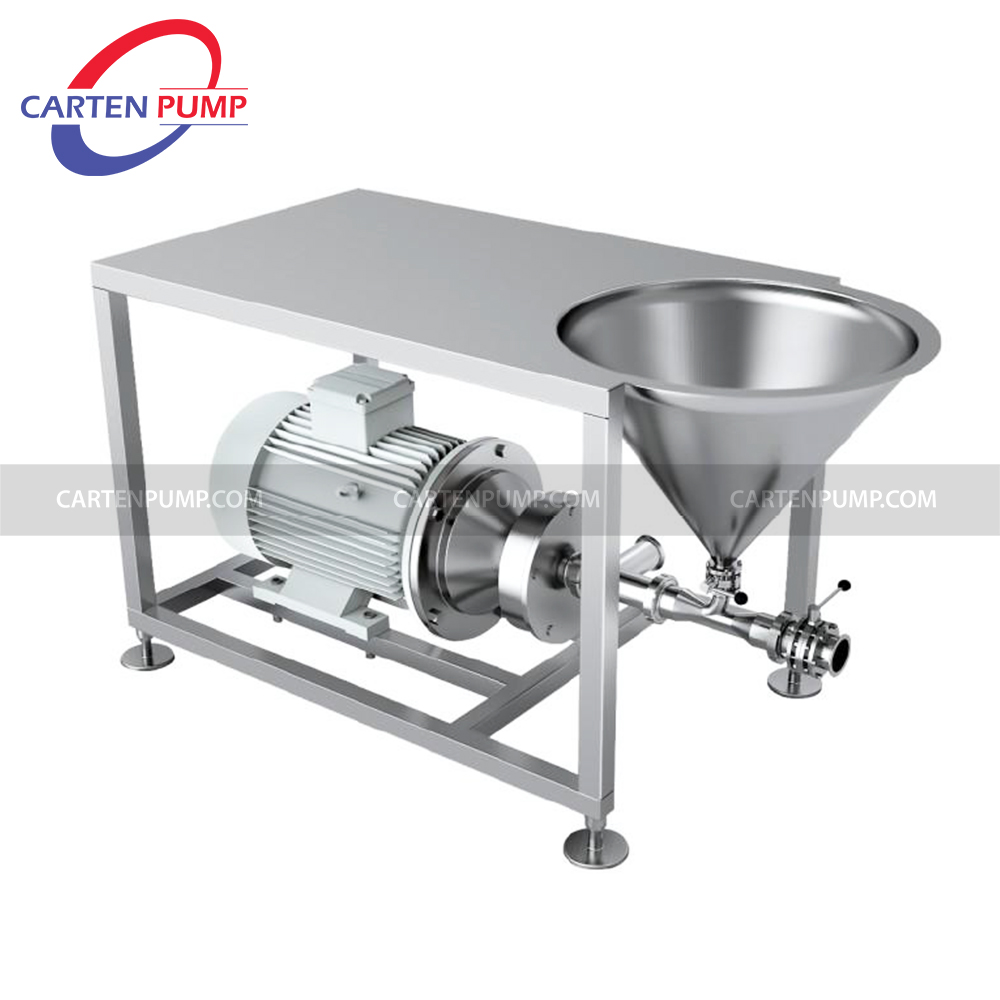

High Shear Mixing System HSL Series

  • Model: HSL Series
  • Rotation speed: 1450RPM / 2900RPM
  • Origin: Taiwan
  • Warranty: 12 months

Technical specifications:

MODEL HOPPER CAPACITY (L) CAPACITY (M3/H) ROTATION SPEED (RPM) MOTOR POWER (KW)
HSL-10 20 – 40 0 – 1.6 2900 1.5
HSL-20 20 – 40 0 – 3.2 2900 2.2
HSL-30 20 – 40 0 – 4 2900 4.0
HSL-40 30 – 50 0 – 5.5 2900 5.5
HSL-50 30 – 50 0 – 8.5 2900 7.5
HSL-60 40 – 65 0 – 12.5 2900 11.0
HSL-70 40 – 65  0 – 18.5 1450 15.0
HSL-80 40 – 65 0 – 26 1450 22.0
HSL-90 50 – 80 0 – 36 1450 30.0
HSL-100 50 – 80 0 – 52 1450 45.0
